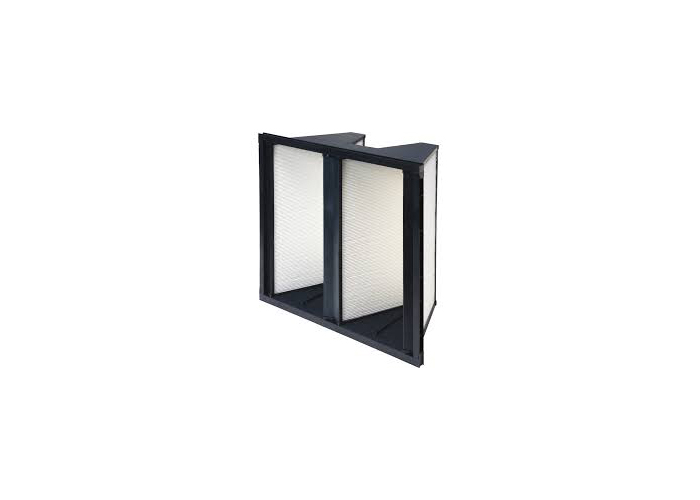

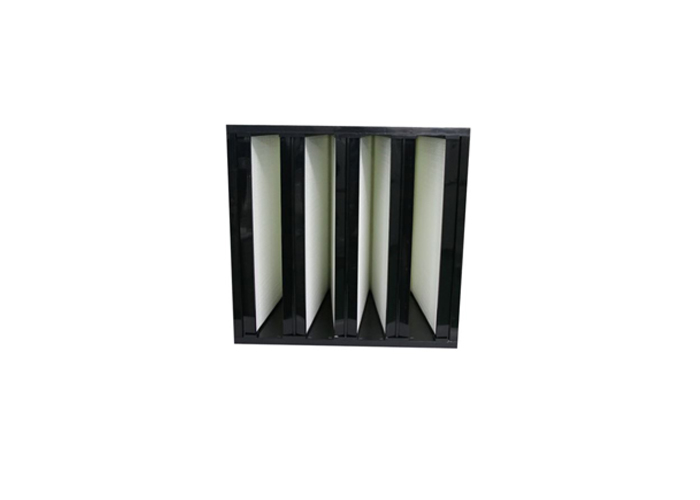

Rigid V-packing Plastic Frame Air Filter Medium Efficiency V Bank Filter, V Pack Filter, Rigid Pocket Filter Description:
Air conditional filters
1.Name: F7,F8,H11 V pack rigid filter V bank filter Compact filter
2. Efficiency: F7, F8,F9,H11
3. Max. operating temperature: 70°C
4. Max. relative humidity: 80%
5. Filter media: superfine fiber glass paper
6. Frame: ABS plastic or galvanized steel ,plastic frame black and blue color are available
7. Separator: hot melt adhesive
8. Sealant: polyurethane
8. Gasket: EVA
9.Specification:
592*592*292mm 4V
592*287*292mm 4V
592*490*292mm 4V
490*490*292mm 3V
592*592*400mm 4V
592*297*292mm 4V
Other size customized are available
Low initial pressure drop
High dust holding capacity
High air flow rate
Long operating life
Sturdy construction
Filter Class (EN 779 & EN 1822) F6 - F9
Maximum Operating Temperature 70 °C
Relative Humidity < 100%
Media Format Mini-Pleat
Media Material Micro-glass fibre paper
Frame Material ABS
Applications:fine particle filtration and pre-filtration for absolute filters
Type:multi-v packs filter
Frame:plastic or galvanized steel
Filter media:glass fiber paper or synthetic paper
Separators:continuous thermoplastic cord
Sealant:polyurethane
EN 779 Class:F6－F9
Average arrestance:99%(ASHRAE 52.1-1992)
MERV:MERV 11－15(ASHRAE 52.2-1999)
DIN 53438 Flammability:F1
UL 900 Standard:CLASS 2
Final pressure drop:(recommender) 450Pa
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:60℃
Max. relative humidity:80%
Air conditional filters
V-type medium air filter technology parameters
| Width (mm) | Height (mm) | Depth (mm) | Pockets | Air flow(m³/h) | Initial Resistance (≤Pa) | Final Resistance (Pa) | Media area (m²) | Dust Holding(g) | Efficiency |
| 595 | 595 | 295 | 3 | 2800 | 120 | 300-400 | 16.2 | 1460 | F7 |
| 595 | 595 | 295 | 4 | 3700 | 120 | 300-400 | 21.6 | 1950 | F7 |
| 610 | 610 | 295 | 5 | 4700 | 120 | 300-400 | 27.7 | 2490 | F7 |
| 595 | 595 | 295 | 3 | 2600 | 120 | 300-400 | 16.2 | 1430 | F8 |
| 595 | 595 | 295 | 4 | 3500 | 120 | 300-400 | 21.6 | 1900 | F8 |
| 610 | 610 | 295 | 5 | 4500 | 120 | 300-400 | 27.7 | 2440 | F8 |
| 595 | 595 | 295 | 3 | 2900 | 120 | 400-500 | 17.8 | 1570 | F9 |
| 595 | 595 | 295 | 4 | 3600 | 120 | 400-500 | 23.8 | 2090 | F9 |
| Model | Dimensions(mm) (Width×height×depth) | Rated air flow M3/h | Initial resistance pa | Material |
| Frame | Filtering media |
| GC | 595*595*46 595*495*46 595*295*46 495*495*46 495*295*46 295*295*46 | 3200 2700 1600 2200 1300 800 | 40 | Aluminum alloy | Activated felt/ activated carbon |
V-type Filter Media and Operation condition
| Media | Domestic/import High-humidity resistance Glass fiber |
| Sealant | Polyurethane |
| Frame | Galvanized frame/Aluminum/Plastic |
| Separator | EVA hot melt bead |
| Gasket | EVA. Neoprene |
| Efficiency | 65%-95% @0.5 μm |
| Max. Temperature | 70°C |
| Max. Humidity | 80%-100% |
